Chapter 3:
Caché's Application Server

The Caché Application Server offers advanced object programming capabilities, provides sophisti-cated data caching, and integrates easy access to a variety of technologies. The Caché Application Server makes it possible to develop sophisticated database applications rapidly, operate them with high performance, and support them easily.

More specifically, the Caché Application Server provides

• The Caché Virtual Machine which runs two built-in scripting languages – Caché ObjectScript and Basic.

• Access to Caché Multidimensional Data Servers on the same and other computers with transparent routing.

• Connectivity software with client side caching to permit rapid access to Caché Objects from all commonly used technologies, including Java, C++, C#, COM, .NET, Visual Basic, and Delphi. Caché automatically performs the networking between the client and Application Server.

• Compatibility with SOAP and XML.

• SQL access using ODBC and JDBC, including sophisticated caching at the client and application server for high performance.

• Access to relational databases.

• Caché Server Pages for high-performance, easy-to-program Web applications.

• Caché Studio – an IDE to rapidly develop and debug applications with Caché.

• Code for the Scripting Languages is stored in the database and can be changed on-line, with changes automatically propagating to all application servers.

The Caché Virtual Machine and Scripting Languages

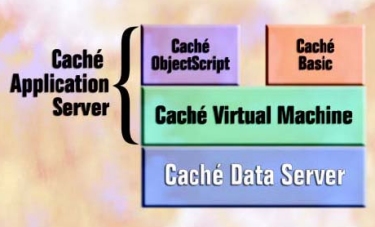

The core of the Caché Application Server is the extremely fast Caché Virtual Machine, which supports Caché’s two scripting languages – Caché ObjectScript and Basic.

• Caché ObjectScript is a powerful and easy-to-learn object-oriented language with extremely flexible data structures.

• Basic provides an easy way for Visual Basic programmers to start using Caché. Similar to VBScript, Basic is extended to have direct access to the Caché Multidimensional Arrays.

Database access within the Caché Virtual Machine is highly optimized. Each user process in the Caché Virtual Machine has direct access to the multidimensional data structures by making calls to shared memory that access a shared database cache. All other technologies (Java, C++, ODBC, JDBC, etc.) connect through the Caché Virtual Machine to access the database.

Complete Interoperability

Since both Caché ObjectScript and Basic are implemented on the same Caché Virtual Machine, they are completely interoperable:

• Any object method can be written in either language – the same class can use both languages.

• Each language can make calls to code written in the other language.

• They share variables, arrays, and objects.

Faster Development / Flexible Deployment

In almost all cases, programmers can develop applications faster, and those applications will run significantly faster with greater scalability, by writing as much code as possible in these scripting languages – Caché ObjectScript and Basic – so that they run in the Caché Virtual Machine. Plus, such code requires no changes to switch hardware or operating systems. Caché automatically handles all differences in operating system and hardware.

Caché ObjectScript

Caché ObjectScript is a powerful, object-oriented programming language designed for rapid development of database applications. Here are some of the key characteristics of the language.

Overall Structure
Caché ObjectScript is command oriented; hence it has syntax such as:

set x=a+b
do rotate(a,3)
if (x>3)

There is a set of built-in system functions that are particularly powerful for text manipulation. Their names all start with the single ‘$’ character to distinguish them from variable and array names. For example:

Expressions use left-to-right operator precedence, just like most hand-held calculators, except when parentheses alter the order of evaluation.

Flexible Data Storage

One of the most unique characteristics of Caché ObjectScript is its highly flexible and dynamic data storage. Data may be stored in:

• object properties.

• variables.

• sparse, multidimensional arrays that permit any type of data for subscripts.

• database files (“globals”) which are sparse multidimensional arrays.

With rare exceptions, any place in the language where a variable can be used, an array, object property, or global reference could also be used.

In most computer languages, datatypes are an extension of hardware storage concepts (integer, float, char, etc.). However, Caché ObjectScript has the philosophy that humans don’t think using such storage types, and that these “computer-centric” datatypes simply impede rapid application development. Requiring declarations and dimension statements introduces far more errors than they help prevent (errors such as a 2-byte integer overflow, or when a string overflows its alloca-tion of memory and corrupts other storage). However, object typing, such as Person, Invoice, or Animal, is viewed as highly valuable and consistent with the way humans think.

Thus, in Caché ObjectScript, object properties are strongly typed, but the other three types of storage (variables, arrays, and global nodes) are fully polymorphic, typeless entities that need not be declared or defined. They simply pop into existence as they are used and mold themselves to the data needs of what they are storing and how they are being used in an expression. Even arrays do not need any specification of size or dimension or type of subscripts or data. For example, a developer might create an array called Person by simply setting:

set Person(”Smith”,”John”)=”I’m a good person”

In this example, data was stored in a two-dimensional array using string data for subscripts. Other data nodes in this array might have a different number of dimensions and might intermix strings, integers, or other types of data for subscripts. For example, one might store data in:

abc(3)
abc(3,-45.6,”Yes”)
abc(”Count”)


all in the same array.

Direct Access to the Database

A direct reference to the database (a “global reference”) is essentially a multidi-mensional array reference preceded by the carat character ‘^’. That character indicates this is a reference to data stored in the database rather than to tempo-rary process private data. Each such database array is called a “global”.

As with multidimensional arrays and variables, no declarations or definitions or reservations of storage are required to access or store data in the database; global data simply pops into existence as data is stored. For example, to store information in the database one might write:

set ^Person(”Smith”,”John”)=”I’m a very good person”

and later might retrieve it by code such as:

set x=^Person(”Smith”,”John”)

The programmer has complete flexibility in how to structure these global data arrays. (See the Multidimensional Data Model.)

Object References

Caché Objects implement the ODMG data model with powerful extensions.

In Caché ObjectScript an “oref” is used to access an object (an “oref” is typically a variable whose value specifies which in-memory object is being referenced). The “oref” is followed by a dot and then by the name of a property or method. Object references can be used wherever an expres-sion can be used. For example:

set name=person.Name	// ‘person’ is a variable whose // value is an oref
	// the person’s name is put into // the variable ‘name’
if (person.Age>x)	// see if the person’s age is //greater than ‘x’
set money=invoice.Total()	// ‘Total()’ is a method that // calculates the sum of
	// all of the invoice’s // line items

Methods can also be executed with a DO command when no return value is needed. For example:

do part.Increment()

// ‘Increment()’ is a method whose // return value, if any, // is ignored

The “oref” is not the same as a database object ID. The object ID is a value that is permanently associated with a database object; it is used to retrieve and store a database object. Once an object is in memory, it is assigned a reusable oref value that is then used to access the object’s data. The next time that same database object is brought into memory it will probably be assigned a different oref value.

HTML and SQL Access

HTML for Web applications and SQL can be embedded in Caché ObjectScript code.

Calling Code

In some object languages, all code has to be part of some method. Caché ObjectScript doesn’t have that restriction – code may be directly called or called through object syntax.

Code is often called using the DO command.

do rotate(a,3)

Code that returns a value can also be called as a function. For example,

set x=a+$$insert(3,y)

calls the programmer-written procedure or subroutine “insert”.

Code can also be invoked as an object method.

Both call by value and call by reference is supported for parameters.

Routines

Caché ObjectScript code is fundamentally organized into a set of “routines”. Each routine (typically up to 32kb in size) is atomic in the sense that it can be independently edited, stored, and compiled. Routines are linked dynamically at runtime; there is no separate linking step for the programmer. Routine code is stored in the database; thus, routines can be dynamically paged across the network rather than having to be installed on each computer.

Within a routine, code is organized as a set of procedures and/or subroutines. (An object method is a procedure, but it is accessed by a different syntax.)

When calling code that is within the same routine, only the procedure or subroutine name is needed. Otherwise, the routine name must be appended to it.

A procedure or subroutine that has a return value of interest should be called using the “$$” function syntax.

Routines can be edited and compiled through the Caché Studio.

Object Methods

Class definitions and their method code are stored in global data files, and the Class Compiler compiles each class into one or more routines. Each method is simply a procedure in a routine, although it can only be invoked by object syntax. For instance, if the Patient class defines an Admit method and the Pat variable identifies a specific Patient object, then we call the Admit method for that object with the following syntax:

Procedures and Public/Private Variables

A procedure is a block of code within a routine that is similar to a function in other languages. A procedure consists of a name, a formal parameter list, a list of public variables, and a block of code delimited by ‘{}’. For example:

Admit(x,y)[name,recnum] { ...code goes here}

In Caché ObjectScript, some variables are common and others are private to a particular proce-dure. Every variable that is used within a procedure is considered private to that procedure unless it is listed in the public list. In the above example, ‘name’ and ‘recnum’ access the public variables by those names, whereas all other variables exist only for this invocation of this procedure. Variable names that start with a ‘%’ character are always implicitly public.

Procedures cannot be nested, although a procedure can contain subroutines.

Subroutines

Routines may also contain subroutines, which are lighter weight than procedures. A subroutine may contain a parameter list and it may return a value, but it does not have a public list or formal block structure. Subroutines may be embedded within procedures or be at the same level as a procedure in a routine.

Subroutines permit the calling of code using the same public/private set of variables as the caller, and they can be called quicker. A subroutine embedded within a procedure uses the same variable scope as the proce-dure and may only be called from within that proce-dure. Variable references for a subroutine that is not part of a procedure are all to public variables.

BASIC

Basic is perhaps the world’s best-known application programming language. In Caché, Basic has been extended to support direct access of the Data Server’s core data structures – multidimen-sional Array – as well as other Caché Application Server features. It directly supports the Caché Object Model using Visual Basic syntax, and runs in the Caché Virtual Machine.

Basic can be used either as methods of classes or as Caché routines (see the Caché ObjectScript description of routines.) Basic can call Caché ObjectScript, and vice-versa, with both languages accessing the same variables, arrays, and objects in process memory.

Arrays have been extended to be far more powerful:

• The presence of a ‘^’ character preceding the array name indicates a reference to a database multidimensional array – persistent arrays that are shared with other processes.

• Subscripts can be of any datatype – strings, integers, decimal numbers, etc.

• Data can be stored at multiple subscript levels in the same array – for example, data could be stored at A(“colors”) and A(“colors”,3).

• Arrays do not have to be declared and they are always sparse – Caché only reserves space as nodes are inserted.

• A Traverse function allows identification of the next (or previous) subscript at a given subscript level.

Other extensions include:

• Transaction processing commands to Start, Commit, and Rollback a transaction.

• An atomic increment function that can be used on the database.

• Extensions that provide better integration with the Caché Application Server capabilities.

Object Access with Basic

In Caché, classes are organized into packages, and class names include the package name followed by a period. For example, Sample.Person is a Person class of the Sample package.

The Basic New command is used to create an object. Basic has been extended with an OpenID command to access an existing object:

Here are some examples of code that access the person’s properties:

Database classes can be saved to disk with the Save method. For example:

person.Save()

will save the person, creating an object ID if it is the first time the object was stored. If related objects (such as the Employer) were also modified, they are automatically saved as well.

Java

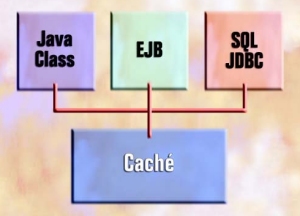

Java is an increasingly popular programming technology, but connecting Java applications to a database can be challenging. Connecting to a relational database requires extensive coding of SQL – which is very time consuming and blunts many of the advantages of Java’s object technology. Direct object syntax to access the database is usually preferred, and some like the functionality of Enterprise Java Beans. Caché supports all of these approaches:

• Any Caché class can be projected as a Java class, so properties and methods can be accessed as Java objects.

• Caché classes can also be projected as Enterprise Java Beans (EJB).

• JDBC provides high performance SQL access using a completely Java-based (Type 4) driver.

Object Access Through Projected Classes

Every Caché class can be projected as a Java (or EJB) class, with methods corresponding to every property and method of the Caché class. To Java programs these classes look just like any other local Java classes. The generated Java class uses a Java library provided by InterSystems to handle all communications between the client and server.

State for every Caché object is maintained in the Caché Application Server, although properties of the class are also cached in the client to optimize performance. Java method calls invoke corre-sponding methods on the Caché Application Server – including methods to store an object in the database and later retrieve it. It is transparent to the client as to which Caché Data Server contains the data, or even if the object data is stored in a relational database accessed through the Caché Application Server.

Caché Methods Written in Java

Methods of Caché classes can be written in Java using Caché Studio. However, unlike Caché ObjectScript and Basic, Java methods are not executed by the Caché Virtual Machine. Instead, they are included in the generated Java class and executed in any Java Virtual Machine. Such code is not accessible from non-Java methods.

Providing Persistence for J2EE Applications

Developers of J2EE applications, which use Enterprise Java Beans (EJB), work primarily with objects until such time as they need to access the database. Then they are usually forced to revert to using SQL. Through its JDBC interface, Caché can provide extremely fast SQL response to such applications. However, SQL access is not generally the preferred approach.

Object databases represent a more natural access technique to EJB program-mers. Caché projects Caché classes as EJBs, automatically generating high-performance persistence methods for Bean-Managed Persistence (BMP). This avoids the overhead of SQL and object/relational mapping – the result is higher scalability for J2EE applications.

High Performance Strategies with Java

Code in the Caché Virtual Machine usually executes faster than code in a Java Virtual Machine, and it is also usually much faster to develop. Although it is possible to build complete applications in Java, most clients obtain the best results by maximizing the amount of code they put in the Caché Application Server’s Scripting Languages (Basic and Caché ObjectScript) and limiting Java to the user interface portion of the application.

C++

Every Caché class can be projected as a C++ class, with methods correspond-ing to each property and method of the Caché class. To C++ programs, these classes look just like any other local C++ classes, and Caché automatically handles all communications between the client and server. Properties of the class are cached on the client, and C++ method calls invoke corresponding server side methods – including methods to store an object in the database and later retrieve it.

The Caché Advantage Flexibility Java developers have choices when it comes to accessing Caché objects – they can use SQL and JDBC or more naturally project objects as Java classes or Enterprise Java Beans. High Performance All Java applica-tions, regardless of how they are connected to Caché, benefit from Caché’s superior performance and scalability. Native Compatibility with J2EE Means More Rapid Development Caché classes can easily be projected as EJBs, giving J2EE developers a simple way to connect to Caché’s post-relational database. When a Caché class is projected using bean-managed persistence, Caché auto-matically generates the method used by the EJB to access the Caché database. Because developers no longer have to hand code persistence methods, applications can be com-pleted more quickly.

Caché and .NET

Because of its open and flexible data access, Caché works seamlessly with .NET. There are many ways of connecting the two, including objects, SQL, XML, and SOAP. Developers can create applications with the technologies they prefer – all of them will benefit from Caché’s superior performance and scalability.

COM & ADO

COM and ADO are both considered “older” Microsoft technologies, included in .NET to encourage migration to the newer framework. Caché interacts with COM – through its ObjectServer for ActiveX – exposing Caché classes as COM-compliant classes. In contrast, ADO provides object “wrappers” for relational data, and interacts with Caché via Caché’s relational data access.

ADO.NET

ADO.NET is a new incarnation of ADO, optimized for use in the .NET framework. It is intended to make .NET applications “database independent”. Like ADO, it uses Caché’s relational data access to interact with Caché.

Web Services

There are two ways of using Web services in .NET. One is to send XML documents over HTTP. The other is to use the SOAP protocol to simplify the exchange of XML documents. In both cases, because Caché can expose data as either XML or SOAP documents, it works seamlessly with .NET Web services.

The Caché Advantage Speedy Data Serving Web applications that use Caché as a data server benefit from the high performance and massive scalability provided by Caché’s multidimensional data engine. Productivity Developers will be more productive when they work with their favorite tools in environments that are familiar to them. Providing both SQL and object data access, Caché supports a wide variety of common development technologies and tools. Compatibility with .NET Caché fits easily into .NET architectures, giving developers the option of connecting to clients via Web services, XML, COM, or ODBC.

Caché and XML

Just as HTML is an Internet-compatible mark-up language for displaying data, XML is a mark-up language for ex-changing data between applications. Using XML, disparate applications (within a company, or at different enterprises) can share data over a network. The structure of XML data is hierarchical and multidimensional, making it a natural match for Caché’s multidimensional data engine.

Caché provides an easy-to-use, bi-directional interface to XML that eliminates the need for developers to manually create a “mapping layer” of processing between XML data and the database.

Exporting XML

All that is required to make a Caché class compatible with XML is to have it inherit from the %XMLAdaptor class that is included in Caché. This provides all the methods needed to:

• Create either a DTD (Document Type Definition) or an XML Schema for the class. DTD’s and Schemas are documents that define the structure of XML data. Caché will automatically generate DTD’s and XML Schemas, but developers who wish to customize the XML formatting of a class may do so.

• Automatically format data (instances of the class) as XML, according to the defined DTD or Schema.

Importing XML

Caché comes with other classes that provide methods allowing developers to:

• Import XML Schemas and automatically create corresponding Caché classes.

• Import the data in XML documents as instances of Caché classes, via a simple API.

• Parse and validate XML documents via a built-in XML (SAX) parser.

Caché and Web Services

Web Services enable the sharing of application functionality over the Internet as well as within an organization or system. Web Services have an interface described in WSDL (Web Service Defini-tion Language), and they return an XML document formatted according to the SOAP protocol.

Caché enables any class method, any SQL stored procedure, and any query to be automatically exposed as a Web service. Caché generates the WSDL descriptor for the service and, when the service is invoked, sends the response, appropriately formatted as SOAP/XML. Caché also facilitates rapid development by automatically generating a Web page to test the service, without the need to construct a client application.

Integrating Caché with Other Technologies and Popular Tools

Caché can be used immediately with a wide variety of popular development tools and frameworks – virtually any that supports COM or .NET components, Java classes or EJB, SQL access via ODBC or JDBC, or development with XML and Web Services. As a result, Caché delivers unparalleled freedom of choice, enabling each developer to choose the most suitable development approach for each project.

Caché and Rational Rose

Caché RoseLink is an InterSystems-provided add-in to the popular Rational Rose object modeling tool. It provides a full round-trip engineering interface between Caché and Rational Rose, enabling schemas to be designed in Rational Rose and exported to Caché for implementation. Similarly, developers can import schemas from Caché into Rational Rose for further design or documentation.

Caché and Dreamweaver

Caché comes with an add-in to the Dreamweaver Web page design environment that gives Dreamweaver users an easy way of creating Caché Server Pages, and using Caché Application Tags.

Caché Studio

Caché Studio is an easy-to-use and powerful integrated development environment that enables the rapid creation, debugging, and testing of Cach é applications. Notable features include:

Editors

Programmers can write Caché ObjectScript, Basic, and Java code as well as class definition files and Web pages. Clicking on a property, method, etc. in the editor displays the characteristics of that property, etc., and allows them to be edited in that display window.

Wizards

With just a few clicks developers can define or edit classes, Caché Server Pages, and SQL queries, publish Caché methods as Web services, and project Caché classes as Java, COM, or C++ classes, Enterprise Java Beans, and XML documents.

Automatic Syntax Checking

Improper syntax is automatically flagged for Caché ObjectScript, Basic, HTML, and Java.

“ View Web Page” Command

Developers can test Web pages directly from within the development environment.

Visual Debugger

Compile and debug code with a visual debugger, which can also attach to and debug an existing Caché process.

Context Sensitive Help

Caché Studio is fully integrated with its on-line documentation.

“ Import” and “Export”

Automatically import Caché class definitions from relational DDL schema definitions, or from object modeling tools. An Export tool allows creation of definition files to send to other computers.
